Steering wheel bearings upgrade

Upgrading the wheel bearings in an Xbox 360 steering wheel to use a metal bearing rather than a plastic bush

Table of Contents

Please support the blog by shopping at abelectronics

Please support the blog and our projects by buying your Raspberry Pi development boards from our online store at AB Electronics UK.

Date 15 December 2006
Views 9,101
Time to read 2 minutes read

Changing the default plastic bearing in the official Xbox 360 steering wheel to a sealed cartridge bearing.

Parts Required:

  • Xbox 360 Steering Wheel
  • Sealed bearing race, 45mm internal, 75mm external, 16mm high. Available from RS Electronics, part no. 285-0778. rs-online.com



An alternative bearing has been used on another mod by Prime NL who use the following: Serial: 61809-2RS1- Inner: 45 mm. - Outer: 60 mm. - Height: 8 mm.

Stage 1: Removing the old plastic bush

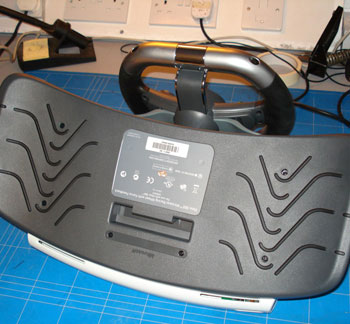

The Base of the unmodified wheel

Xbox 360 Steering Wheel

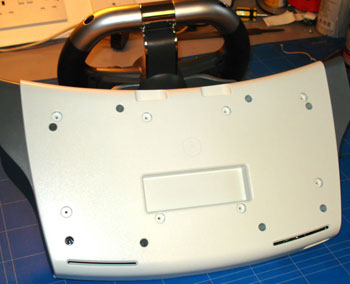

The plastic leg/gripper panel was removed.

 Xbox 360 Steering Wheel base removed

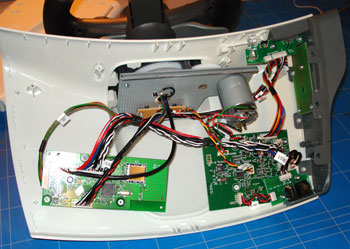

Base cover removed

Xbox 360 Steering Wheel cover off

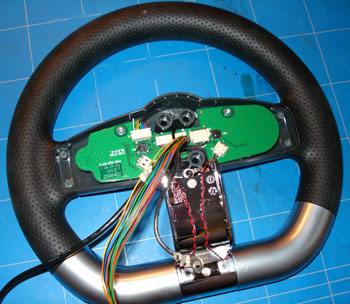

Steering wheel is removed, you need to remove the cables which go through the centre of the spindle before you remove the wheel.

 Xbox 360 Steering Wheel off

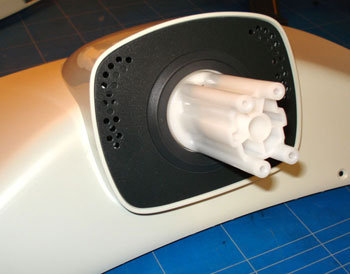

The original spindle is in place.

Xbox 360 Steering Wheel spindle

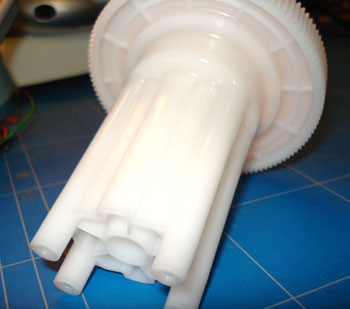

The spindle was removed from the frame

Xbox 360 Steering Wheel spindle removed

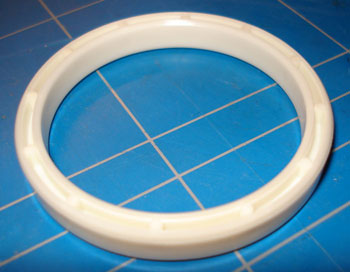

The original plastic bush with lots of sideways play

Old plastic bearing

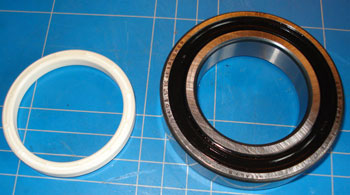

New bearing race next to an original plastic bush

New bearing for Xbox 360 Steering Wheel

Stage 2: Fitting the new bearing

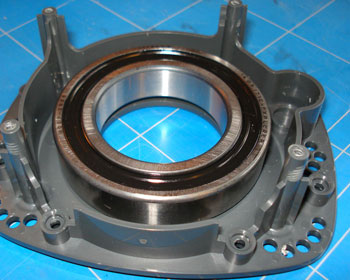

Bearing fitted to the front panel with super glue to hold central before the addition of fixing resin

new bearing in place

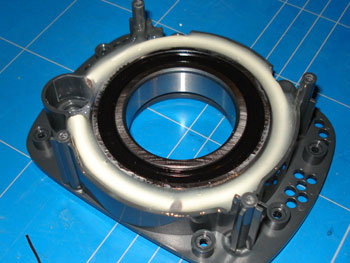

The new bearing with resin glue and plastic shims around the edge to hold it in place.

Xbox 360 Steering Wheel bearing fitted

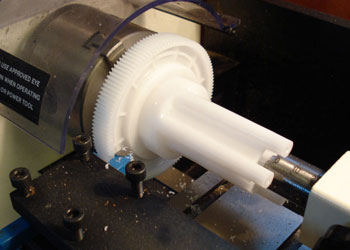

Trimming the plastic spindle to fit the 45mm bearing

Trimming the Xbox 360 Steering Wheel spindle

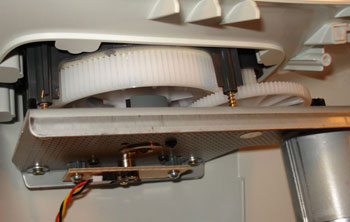

Final reassembly, note the extra space between the mounting pillars and the motor plate. This could be reinforced with longer spacers if necessary but we found there is no movement if you tighten the screws evenly.

Xbox 360 Steering Wheel upgrade complete

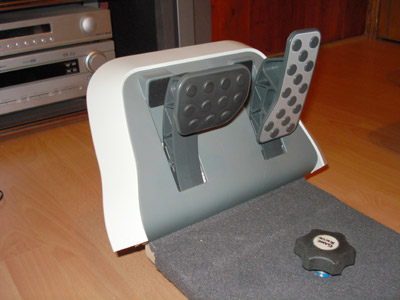

Pedal box fitted to the new frame.

Xbox 360 Steering Wheel pedal box

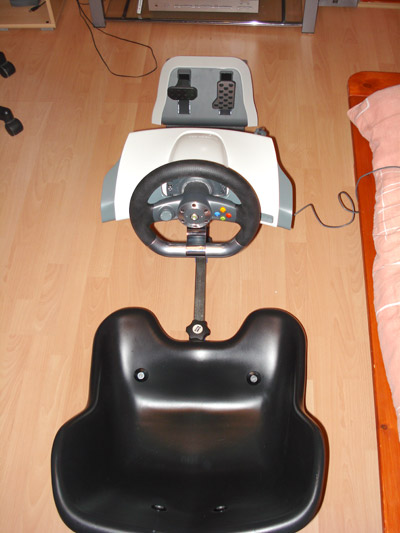

Finished Steering Wheel and Pedal Box fitted to the frame.

Xbox 360 Steering Wheel and pedals fitted

Tags: Projects Xbox

1 Comments

  • User Image

    Bantum Works

    30 May 2020 at 12:43 am

    Another bearing that fits perfect ( not metric ) : FAFNIR 3544 FS160 1 13/16" ID 2¼" OD BEARING ...
    Cheers, Bantum ,,,
