Low Voltage Cut off using MAX8212

Using a MAX8212 to add a low voltage cut-off on our off-grid solar PV system

Date 10 February 2013
Views 13,355
Time to read 1 minutes read

Since upgrading our solar charge controller to an MPPT model we lost the facility for the charge controller to shut down the inverter when the battery voltage dropped too low. This resulted in a few days when the battery voltage dropped to a very low level and risked damaging the batteries.

To solve this we made a low voltage cut-off circuit using a MAX8212  micropower voltage detector with a 60A rated MOSFET to switch the inverter on and off when the battery voltage reaches a set level.

The PCB layout and schematic are available to download in Diptrace format.

Download the PDF schematic.

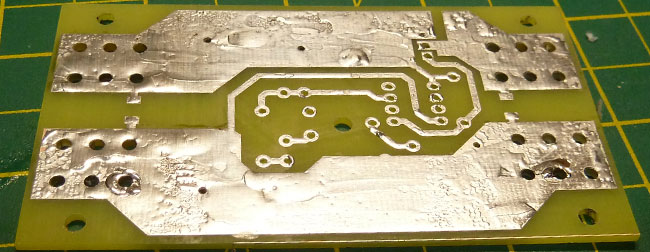

The etched PCB with the tracks covered in a layer of solder.

Low Voltage Cut off pcb

Testing the circuit with a 21W 12V bulb

Low Voltage Cut off testing

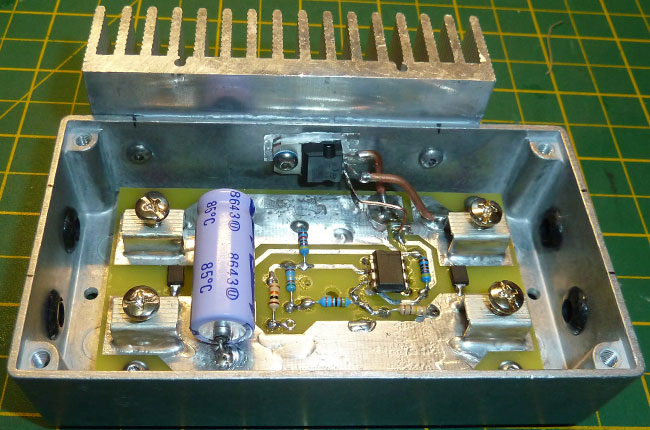

The completed project in a Diecast box with a heatsink fitted to the top.

Low Voltage Cut off in box

The values used on the circuit below give a turn-off voltage of 12.4V and turn on again at 12.7V on the input side.

Low Voltage Cut off Circuit
