iPod dock in dashboard for Landrover Defender

Making a custom hidden iPod dock in dashboard for Landrover Defender to hide the iPod

After installing the Raptor dash I found I needed a new home for my Apple iPod which connects to my headunit. There are very limited spaces available in the Landrover Defender to keep things out of sight so i thought I would use the space which the old fog, hazard and heated screen switches were located by the drivers door.

In order to fit the ipod behind this panel Ii had to make a new ipod dock which holds the ipod secure and has a faceplate which looks the same as the old switch panel.

The new ipod dock was created from a flat sheet of delrin plastic which measured 11mm thick, 100mm wide and 300mm long. The front panel was a section of 6mm aluminium bar. Both where machined on our CNC milling machine with the fixing holes and mountings drilled after the main machining had been completed.

The completed hidden ipod dash dock for the Landrover Defender.

completed hidden ipod dash dock

Milling one of the ipod dock sides from the sheet of delrin.

Milling one of the ipod dock sides

The old switches where trimmed to be the same height as the old switch panel faceplate and then glued onto a sheet of 2mm plastic to look the same as the old switch panel when viewed from outside. The photo below shows the new fake faceplate and the front panel of the dock which will bolt into the land rover to replace the old switch panel..

fake front panel

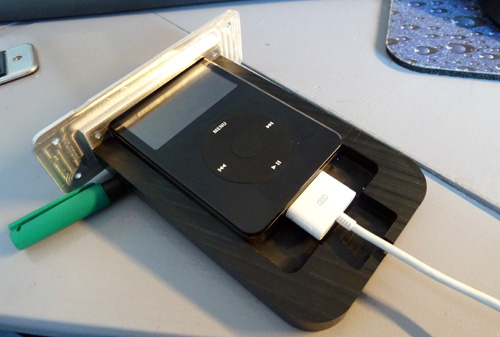

The ipod was test fitted into one side of the new dock to check for clearance for the cable and the front plate. The second side of the dock was then milled to be bolted to the lower side and the front panel with M3 allen key bolts.

test fitted the ipod

The front pane is held to the back of the dock with small magnets which also bolt into the original switch panel mounting holes in the Defender dashboard.

complete ipod dock

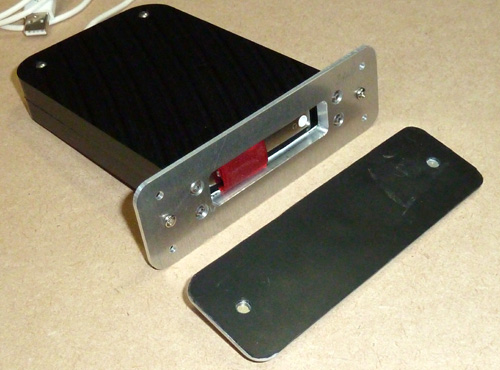

With the front panel removed you can see the 2 raised bolts which locate into the front panel recesses.

Front panel removed

The completed dock showing the ipod being removed with the aid of a short loop of ribbon material.

The completed dock
