Fitting a Raptor Dash into a 1999 TD5 Defender

Published on Saturday 22 January 2011
Categories: Land Rover |

Raptor Dash Fitting in my 1998 TD5 Landrover Defender

Dashboard purchased from https://www.raptor-engineering.co.uk/

The original blog post from 2011 was lost in a database crash and so this post has been reconstructed from memory and may not be exactly the same as the first version!

The radio and console switches removed.

Raptor Dash Fitting

Marking the template (told later that this is upside down)

Raptor Dash Fitting

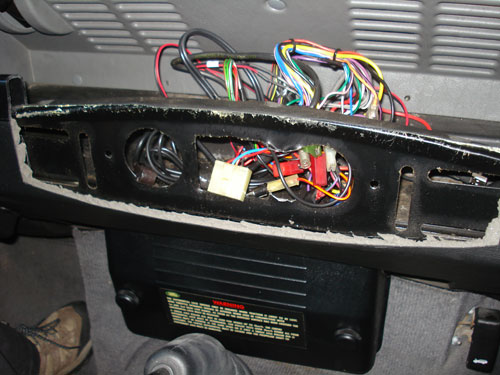

Front padding cut away from around the template.

Raptor Dash Fitting

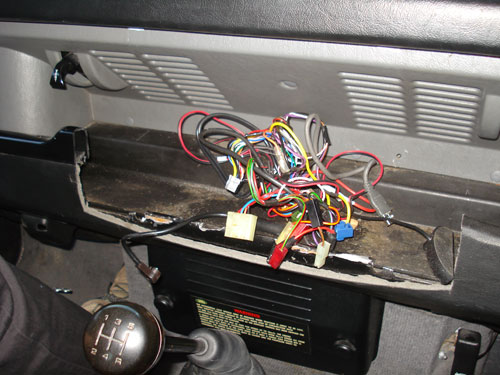

Metal removed from the template area.

Raptor Dash Fitting

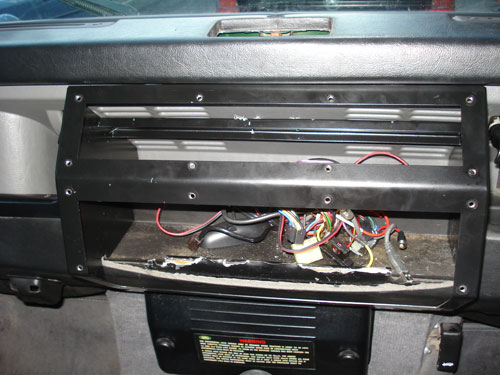

Main Raptor dash frame in place.

Raptor Dash Fitting

Fitting the carling switches in the top panel.

Raptor Dash Fitting

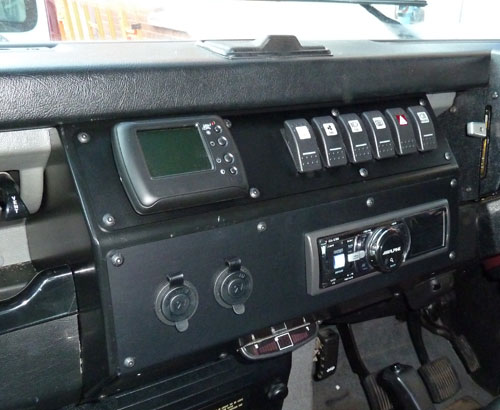

The completed install with reversing camera fitted on the left side.

Raptor Dash Fitting

Front view of the new dash board console.

Raptor Dash Fitting




Simon Bass

26 August 2018 at 10:18 am

where was the fitting purchased, need to fit one in my defender, could you pass on where to buy please. cheers


26 August 2018 at 10:55 am

The dash was ordered from https://www.raptor-engineering.co.uk/


22 November 2018 at 11:07 pm

What is the digital read out to the top left of the dash and the display underneath it? Is one of them battery monitoring? It looks like a tidy solution if that’s the case. I’d be interested to know what they’re called and where you got them from! Many thanks. Josh


23 November 2018 at 9:28 am

Josh, the display was a reversing camera.
