Axminster SIEG Super X1 Micro Mill Z Axis Ballscrew Upgrade

Adding a ballscrew to the Z Axis on our Axminster SIEG Super X1 Micro Mill

Following the ballscrew upgrade of the X and Y axis of our Micro Mill in 2010 we decided it was time to try to improve the accuracy of the Z axis on the mill which had been using a basic lead-screw which had a lot of excessive movement.

We source a new anti backlash ballscrew 450mm long with 16mm diameter from China via ebay which was supplied with top and base bearings. In order to maximise the space on the mill bed we decided to mount the new ballscrew behind the main vertical axis on the mill and make new side plates and rear mounting to hold the ball screw and ball nut. The side plates were offset to clear the curved base on the mill.

Testing fit of new side plate.

CNC Mill Conversion

The new side plates are cut from 10mm aluminium sheet.

CNC Mill Conversion

The new back mounting plate was also cut from 10mm thick aluminium and then drilled, tapped and bolted to the existing cast iron mill vertical.

CNC Mill Conversion

The new ballscrew bearings are fitted with M6 bolts and a new plate was machined to connect the ball nut to the new side plates.

CNC Mill Conversion

The base of the mill was cleaned and the X and Y axis runners cleaned and bearings checked while everything was removed.

CNC Mill Conversion

The first test assembly of the new components prior to the fitting of a counter weight system.

CNC Mill Conversion

Back view showing the new ballscrew, ball nut and mounting brackets and plates.

CNC Mill Conversion

A 8.2KG counterweight was made from lead and then a new steel mounting bracket was created. The cables are mountain bike gear cables which are pre-stretched and these run over brass pulleys inside the steel tube to the weight behind the mill.

CNC Mill Conversion

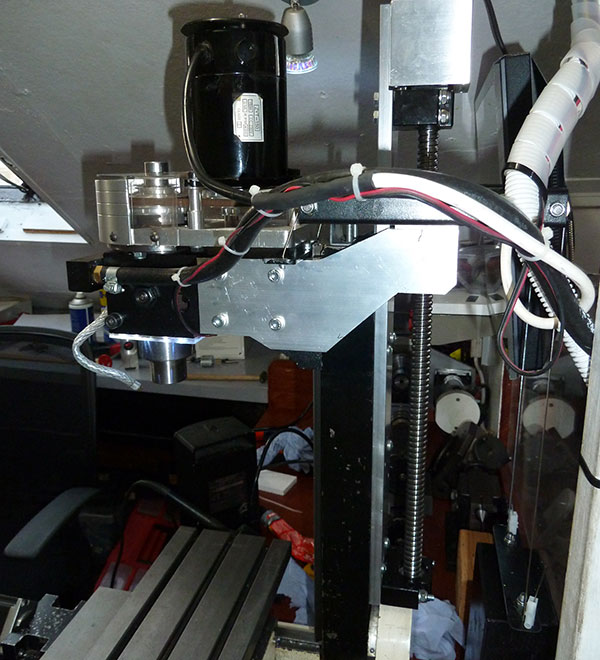

All the components fitted and air cooling and led lighting fitted back on the mill.

CNC Mill Conversion

The total cost for the conversion was around £200 with the cost of importing the ballscrew and purchasing the 10mm aluminium plate/sheet used for the main components. All the bolts and other small parts came from our spares bins.



13 June 2019 at 9:08 am
Just a minor question - with the new side plates fitted to both sides of the spindle box casting, haven't you lost access to the adjustment screws for the gibs ??
13 June 2019 at 9:19 am
Geoff, we added access holes for the screws
