29. 08 2011 15:15
Following from the previous HTC Desire Custom Wood Dock project, I have purchased a HTC HD7 phone and also an Apple iPod Touch.
The plastic ipod stand wasn't very well made and I haven't been able to find a suitable stand for the HTC HD7 so I decided to build another custom stand from a Rosewood block.
The new stand / dock was modeled in Blender and then the 3D model was imported into Cut3d to product 3 cut files to use on our CNC mill.
Parts used are a Apple iPhone dock for the pcb and apple connectors, a surface mounting Micro USB plug and a spare usb lead which was cut then soldered to the micro usb plug on the base of the stand.
Video at end of post.
Blender 3D model screen shot
Screen shot of Cut 3D to produce the cut files for Mach 3 on the mill.

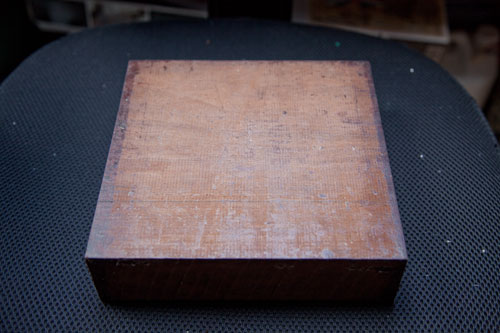

Rosewood block measuring 20cm x 20cm x 5.5cm high
This was cut on our CNC mill as shown in the video below.

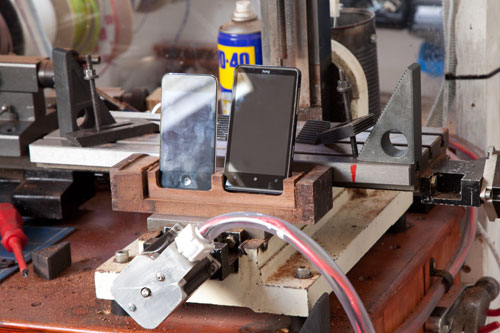

Test fitting the phone and ipod into the stand before the ends where trimmed.

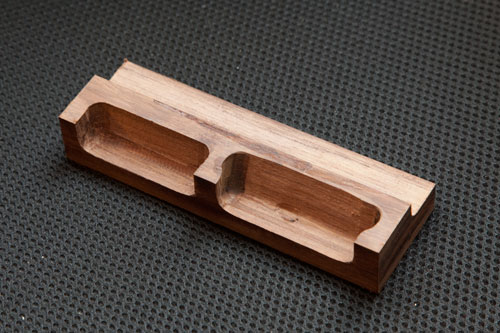

Top view of the stand before the connector sockets where cut.

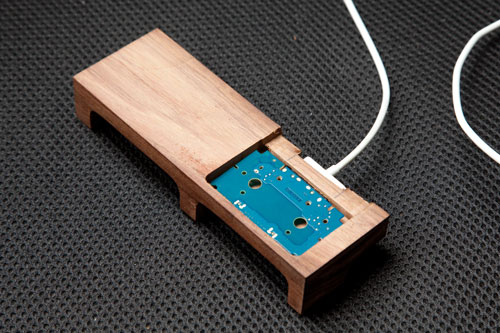

Test fit for the iPod connector and pcb

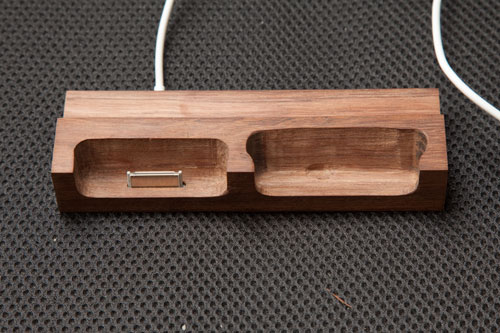

Top view showing the ipod connector fitted

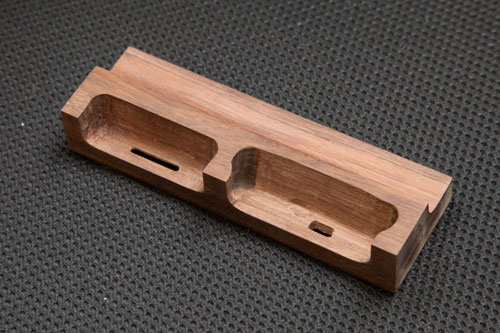

Top view showing ipod and micro usb connector holes.

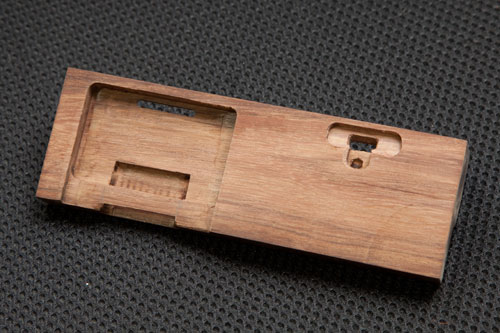

Base view showing ipod and micro usb connector cutouts.

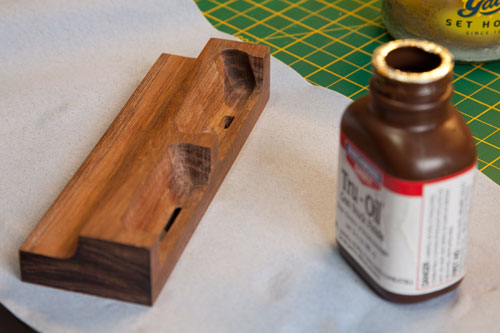

The stand was then coated in several coats of Tru Oil to protect the wood.
Front view after several coats of Tru Oil
Back view after several coats of Tru Oil
Micro USB soldered to usb lead and iphone / ipod connector fitted with small screws.
The finished stand
And with the phone and iPod fitted
Video of the cutting stages speeded up by 8 times.
